SC4-187 Main Control Board

SC4-187 Main Control Board

Main control board for the SC4 Lathe. Programmed for use with the SC4-112 brushless motor.

Not supplied with any wiring diagrams as it is sold as a direct replacement for the SC4 Lathe.

• Dimensions: 220x120x90mm

Please use the photos below to identify the correct control board for your machine

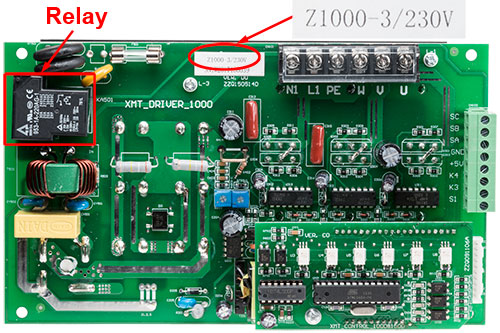

Note: If you are replacing this "older" SC4-187 (Z1000-3) control board...

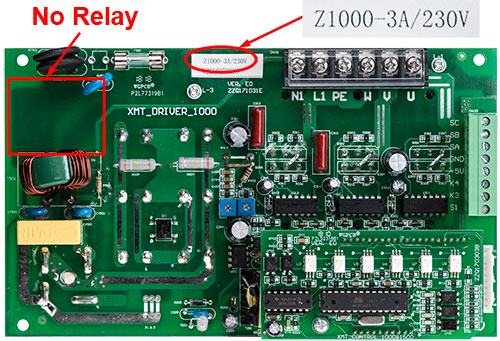

... it has now been superseded by this "new" updated SC4-187 (Z1000-3A) control board.

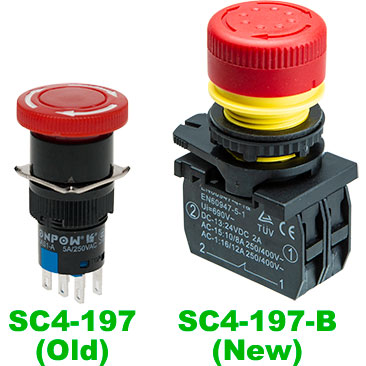

For the updated control board to work correctly, you will need to make sure your machine is fitted with the new style SC4-197-B Emergency Stop Switch.

If your machine has the old style SC4-197 Emergency Stop Switch, you will need to replace the following parts:

• SC4-54-B Touch Panel Overlay (revised to accomodate the new style Emergency Stop switch)
• SC4-56-B Switch Panel (revised to accomodate the new style Emergency Stop switch)
• SC4-187 Main Control Board
• SC4-197-B Emergency Stop Switch (revised to work with the updated control board)

For your convenience: We have put together SC4-187-UP as an upgrade kit comprising all four parts.
