Model 000 Quick Change Tool Post

Details
Specification
More

Model 000 Wedge Type Quick Change Tool Post only - supplied without tool holders so you only buy just the holders you need.

How it Works

The principle of the Model 000 Quick Change Tool Post is that it uses sliding wedges in the dovetails of the tool post to clamp tightly on the tool holder dovetail.

Under Vice

This cut-away view shows how the sliding wedges have teeth which engage in the thread of a triple start screw operated by the locking handle.

For specifications please click the Specification tab.
For links to individual tool holders please click the More tab.

Fitting a Model 000 Quick Change Tool Post to a Mini Lathe

Fitting a Model 000 Quick Change Tool Post to a Myford
To be used with Mod Kit for Myford

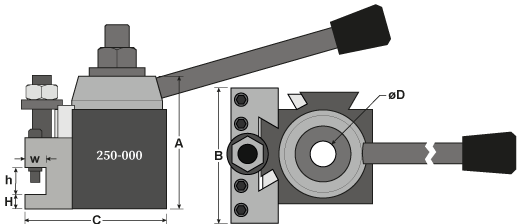

Model 000 Tool Post Dimensions

Tool Holder	A	B	C	øD	H-min	H-max	h	W
Standard	55mm	54mm	58mm	10mm (M10x1.5mm Stud)	4mm	17mm	13mm	8mm
All dimensions are nominal

For links to individual tool holders please click the More tab.

Please click on links below for more information on individual tool holders:

Model 000 Standard Tool Holder
Model 000 Vee Tool Holder
Model 000 Boring Tool Holder
Model 000 Horizontal Parting Blade Holder
Model 000 Angled Parting Blade Holder
Model 000 Knurling Tool Holder
Model 200 Quick Change Tool Post Review by Mike Haughton.

090-070-00351 Model 000 Quick Change Tool Post Only (Wedge Type)

RRP: £62.36 Inc.VAT
£32.00 Excl.VAT
£38.40 Inc.VAT

In
Stock

Add to Basket

Wish List
