Model 200 Quick Change Tool Post

Model 200 Quick Change Tool Post Only
Model 200 Quick Change Tool Post Only
Model 200 Tool Post + 3 Standard tool holders

Model 200 Piston Type Quick Change Tool Post

Options:

  • Model 200 Tool Post only
  • Model 200 Tool Post + 3 Standard Tool Holders
  • Model 200 Tool Post + 3 Vee Tool Holders
Model 200 Tool Post Dimensions

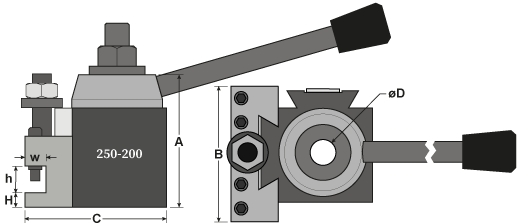

Model 200 QCTP + Standard Toolholder Drawing
Tool Holder A B C øD H-min H-max h W
Standard 93mm 89mm 96mm 16mm
(M16x1.5mm Stud)		 12.5mm 38mm 16.5mm 12.7mm
Vee 93mm 89mm 96mm 16mm
(M16x1.5mm Stud)		 12.5mm 38mm 16.5mm 12.75mm
All dimensions are nominal

Sizing a Tool Post for your lathe

  • Measure the height from the top of your compound slide to the spindle centre. This height should be => than H-min + the height of the tool bit cutting edge. Our Model 100 'Slim' tool holder will help on lathes with limited height.
  • Tool Size. Do the tools you want to use fit the tool holder (h and w)?
  • Mounting Stud. Will your stud fit the hole in the tool post (øD and A). If not, can it be replaced?

For links to individual tool holders please click the More tab.

Please click on links below for more information on individual tool holders:

090-070-00505 Model 200 Quick Change Tool Post Only (Piston Type) RRP: £62.09 Inc.VAT
£30.40 Excl.VAT
£36.48 Inc.VAT 		In
Stock 		Qty:
Add to Basket
Wish List
090-070-00530 Model 200 Quick Change Tool Post with 3 Std. Tool Holders RRP: £123.34 Inc.VAT
£59.04 Excl.VAT
£70.85 Inc.VAT 		In
Stock 		Qty:
Add to Basket
Wish List
090-070-00540 Model 200 Quick Change Tool Post with 3 Vee Tool Holders £59.04 Excl.VAT
£70.85 Inc.VAT 		In
Stock 		Qty:
Add to Basket
Wish List
