Model 222 Quick Change Tool Post

Model 222 Quick Change Tool Post Only (Wedge Type)
Model 222 Quick Change Tool Post Only (Wedge Type)
Model 222 Tool Post + 3 Standard tool holders

Model 222 Wedge Type Quick Change Tool Post

Options:

  • Model 222 Tool Post only
  • Model 222 Tool Post + 3 Standard tool holders

Fully compatible with Model 200 tool holders

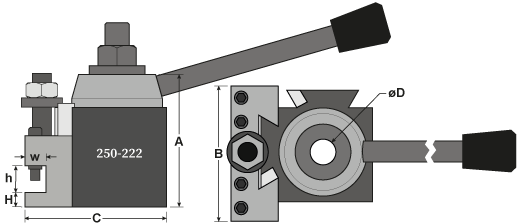

Model 222 Tool Post Dimensions
Model 200 QCTP + Standard Toolholder Drawing
Tool Holder A B C øD H-min H-max h W
Standard 93mm 89mm 96mm 16mm
(5/8" UNF Stud)		 12.5mm 38mm 16.5mm 12.7mm
All dimensions are nominal

Sizing a Tool Post for your lathe

  • Measure the height from the top of your compound slide to the spindle centre. This height should be => than H-min + the height of the tool bit cutting edge.
  • Tool Size. Do the tools you want to use fit the tool holder (h and w)?
  • Mounting Stud. Will your stud fit the hole in the tool post (øD and A). If not, can it be replaced?

For links to individual tool holders please click the More tab.

Please click on links below for more information on individual tool holders:

090-070-00520 Model 222 Quick Change Tool Post Only (Wedge Type) RRP: £80.63 Inc.VAT
£50.67 Excl.VAT
£60.80 Inc.VAT 		In
Stock 		Qty:
Add to Basket
Wish List
090-070-00535 Model 222 Quick Change Tool Post with 3 Std. Tool Holders RRP: £140.03 Inc.VAT
£77.28 Excl.VAT
£92.74 Inc.VAT 		In
Stock 		Qty:
Add to Basket
Wish List
