ARC Versatile Milling Vices - with swivel base

ARC Versatile Milling Vices

Features:

  • The vice may be used on its own or with the swivel base supplied.
  • Angle Lock clamping. When tightening the vice, the angled face on the nut transmits its clamping force both forwards and downwards via a self-aligning spherical segment (an ARC specified improvement). The spherical segment locates in a corresponding recess inside the movable jaw preventing the jaw from lifting off the guideway. A small amount of jaw lift is possible depending on the type of work being held. (A little fettling in the area of the nut casting can improve the accuracy if required.)
  • A friction reducing thrust ball bearing increases clamping pressure when closing the vice.
  • Both ends of the fixed jaw have an M8 threaded hole for mounting a work stop (not included). *Excluding 80mm Vice
  • For light work, the capacity of the vice can be increased by mounting the jaw plates on either end of the jaws or even on the top of the moveable jaw. Note: The fixed and moveable jaw holder height may vary. If necessary, pack/shim as required if using the vice in these configurations. *Excluding 80mm Vice
  • Material: Grey cast iron.
  • Supplied with swivel base marked in 1 degree increments, locking handle, 2 Tee bolts and 2 locating keys.
  80mm
Vice
100mm
Vice
125mm
Vice
Dimensions without Swivel Base
Jaw Width 80mm 100mm 125mm
Jaw Depth 25mm 32mm 40mm
Max Jaw Opening

See Also:

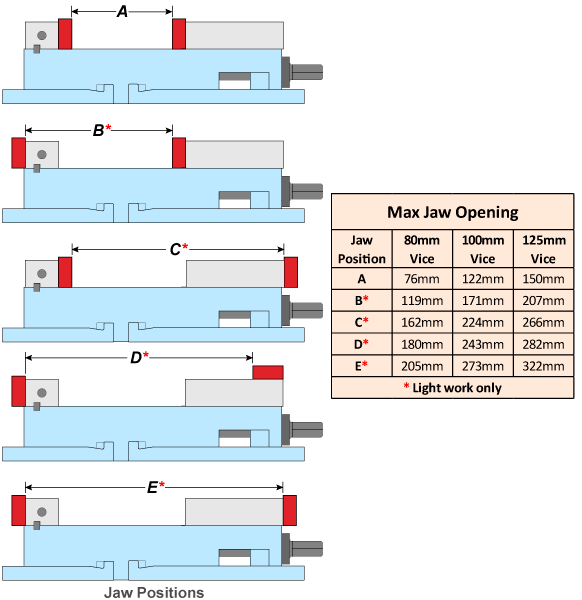

Jaw Position Diagram
76mm 122mm 150mm
Fixing Centres 100mm 130mm 160mm
Fixing Holes 10mm 10mm 12mm
Location Keyway Width 14mm 14mm 14mm
Overall Size
(Vice Only)
Length 252mm 330mm 380mm
Width 118mm 161mm 185mm
Height 73mm 92mm 105mm
Dimensions with Swivel Base
Fixing Centres 170mm 200mm 230mm
Fixing Bolt Size M10 M12 M12
Location Keyway Width 14mm 14mm 14mm
Overall Size
(Vice & Swivel Base)
Length 252mm 330mm 380mm
Width 164mm 205mm 235mm
Height 102mm 125mm 140mm
Weight 8kg 15kg 22kg

Note: The protractor index mark has been deliberately omitted from the vice.

Information

For greater accuracy, an index mark should be scribed on the vice with the swivel base properly located on your milling table with location keys and the fixed jaw clocked square to the table.

130-040-03000 ARC Versatile Milling Vice 80mm RRP: £64.07 Inc.VAT
£33.33 Excl.VAT
£40.00 Inc.VAT
In
Stock
Qty:
130-040-03100 ARC Versatile Milling Vice 100mm RRP: £85.46 Inc.VAT
£43.33 Excl.VAT
£52.00 Inc.VAT
In
Stock
Qty:
130-040-03200 ARC Versatile Milling Vice 125mm RRP: £105.85 Inc.VAT
£53.33 Excl.VAT
£64.00 Inc.VAT
In
Stock
Qty:
